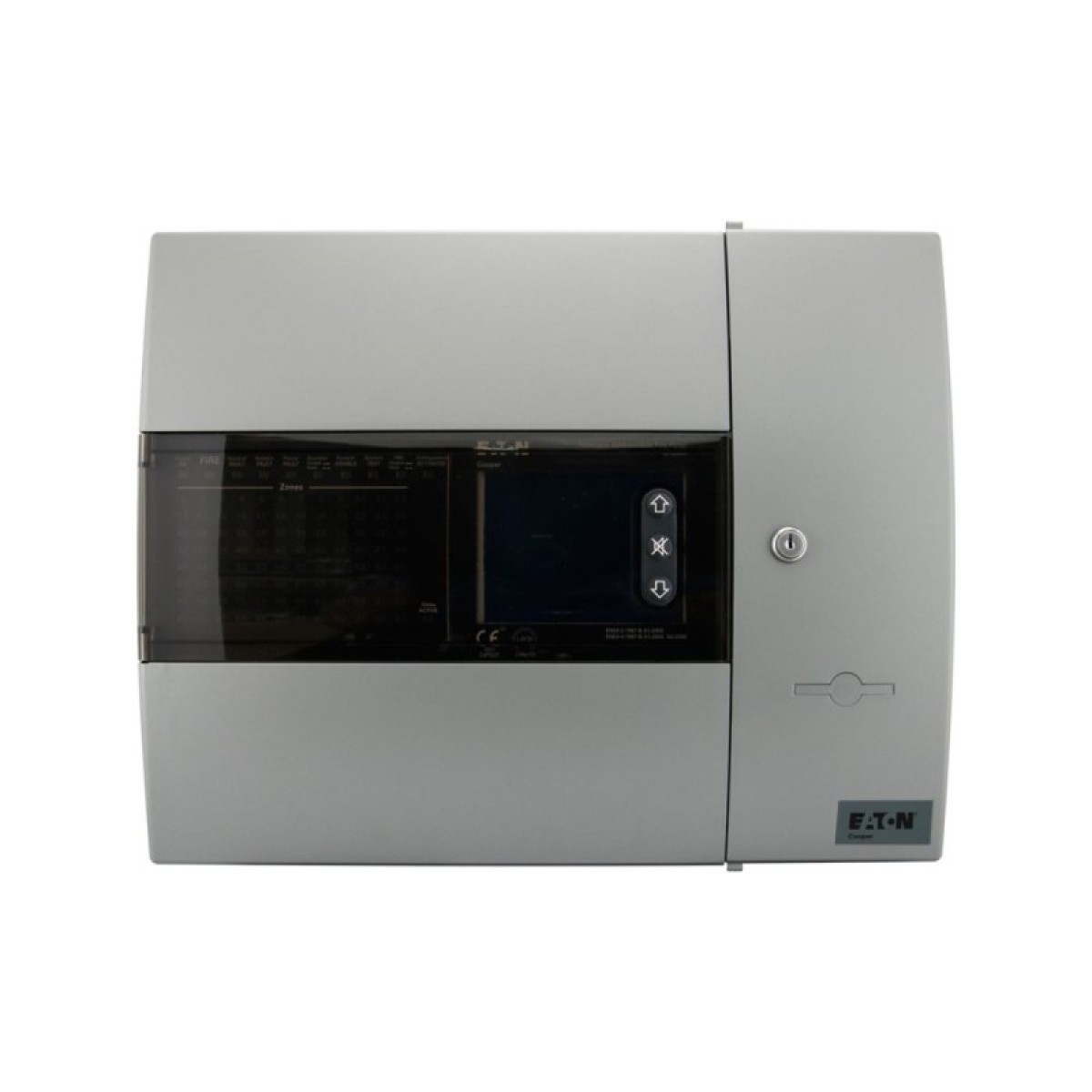

Eaton CF3000 Addressable control panel: Cooper, Addressable, Control Panels, Large System, EN54 Systems, 1 Loop
Description
<p>Eaton’s CF3000 is a high specification addressable control panel which is available in various loop configurations.
</p><p>It combines sophisticated functionality with simple operation and an aesthetically pleasing design.
</p><p>An extensive range of compatible addressable systems ancillaries are available to work with the control panel, all of which incorporate an integral short circuit isolator to provide maximum protection against short circuits on the external loop.</p><p>
</p><p>
</p>
Specifications
<p>General Information</p><p>Product Name: Eaton CF3000 Addressable Control Panel</p><p>Catalog Number: CF30001G</p><p>EAN: 5018986767300</p><p>Product Branding: Eaton Cooper</p><p>Product Type: Addressable, Control Panels, Large System, EN54 Systems, 1 Loop</p><p><br></p><p>Physical Dimensions</p><p>Length/Depth: 180 mm</p><p>Height: 397 mm</p><p>Width: 497 mm</p><p>Weight: 16.804 kg</p><p><br></p><p>Construction</p><p>Front Enclosure Material: ABS</p><p>Back Enclosure Material: Mild steel</p><p>Ingress Protection: IP30</p><p>Mounting Method: Surface mounting</p><p><br></p><p>Cable Entry</p><p>Top: 31 M20 Knockouts</p><p>Rear: 12 M20 Knockouts</p><p><br></p><p>System Features</p><p>System Topology: Addressable</p><p>Maximum Number of Addressable Loops: 1</p><p>Type of Display: Touchscreen</p><p>Class Change Capability: Yes</p><p>Auxiliary Free Output: Yes</p><p>Auxiliary Relays: Fire/Fault</p><p><br></p><p>Integrated Functions</p><p>Interface: External</p><p>Emergency Power Supply: Integrated</p><p>Bus Connection: Suitable</p><p><br></p><p>Connectivity</p><p>External Connection Ports: RS232, RS485</p><p><br></p><p>Power Supply</p><p>Main Input Supply: 230 Vac, 50 Hz</p><p>Certifications & Standards</p><p><br></p><p>EN Certification Standards:</p><p>EN54 Pt2 (Control and Indicating Equipment)</p><p>EN54 Pt4 (Power Supply Equipment)</p><p>EN54-2:1997+A1:2006</p><p>EN54-4:1997+A1:2002+A2:2006<br><br></p><p>Other Certification Standards: LPCB</p>
